Real-time mobile encoding broadcasting solution.
Go-anywhere flexibility for remote broadcast crews.
Freedom to move, freedom to capture- no cables attached.
XVD CamCast Professional™ is an advanced wireless digital streaming solution that represents a true breakthrough in capturing professional live remote broadcasts. Designed to meet the needs of today's OB crews for quick set-up and maximum flexibility, the portable CamCast Professional gives the camera operator total freedom in covering the story.
But CamCast Professional goes far beyond removing cumbersome cables. By utilizing XVD technology, the complete solution delivers remarkably crisp digital video that was simply not possible before. XVD is the most advanced real-time video compression technology available, providing the highest quality visual experience for a given bit rate.
Combined with the latest in wireless networking, the CamCast Professional Receiver supports up to four cameras simultaneously at a single broadcast site. The complete CamCast Professional solution helps OB crews deliver timely live broadcasts with better video quality faster and with less people.
Professional quality video solution for capturing and transmission of live remote broadcasts
in real-time
Battery-powered CamCast transmitter streams wirelessly from Camcorder to a receiver
in OB Van for satellite-transmission or for distribution over an IP network
First in a family of professional broadcasting products utilizing XVD technology
Real-time, high-quality compression of audio and video for broadcasting
Integrated 2.4 GHz wireless interface (WiFi-G)
Supports up to four cameras per site
Compact, rugged device that can be worn by cameraman
Straight-forward user interface for adjusting settings and providing feedback information
Streams wirelessly to a CamCast Professional Receiver (rack-mounted) or to a PC
Supports a wide range of cameras
Instant On/Instant Off

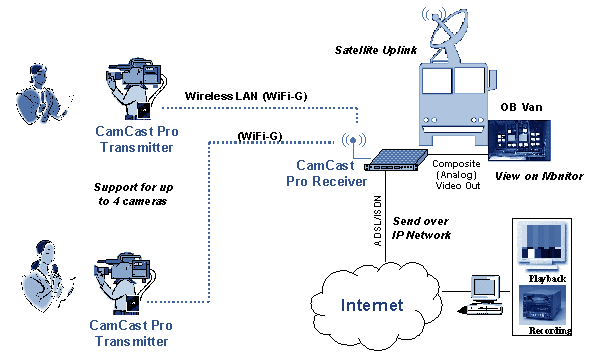

How it Works:
XVD CamCast Professional is a complete end-to-end solution for camera crews to wirelessly transmit high quality video from a remote broadcast site.
Each system can stream up to four cameras simultaneously at the same site. The CamCast Professional Receiver provides monitor viewing and enables transmission by up-linking or sending over an IP-based network.
How it Works:

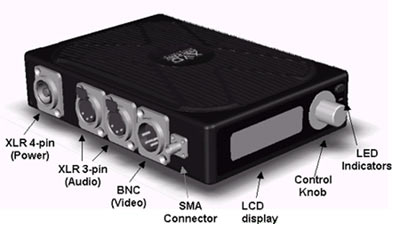

XVD CamCast Professional Transmitter
Feature |
Specification |
Input/Output |
Video Input |
BNC( x 1), 1.0 Vp-p, 75O, synch negative |
Video Signal |
NTSC / PAL |
Audio Input (CH-1/2) |
XLR-3-31 type (x 2), -8dBu/0dBu/+4dBuHigh impedance, Balance |
Network |
2.4 GHz (802.11g) |
Detachable Antenna |
SMA ConnectorOptional directional antenna |
Voltage Input |
<8 Watts, 10-17 volt DC Battery |
Power Connector |
XLR 4 pin (x 1) |
User Interface |
User Settings |
Camera operator can set and adjust frame rate and resolution |
User Feedback |
LCD (for bit-rate, frame rate, resolution)Power indicator (LED)Wireless Link indicator (LED) |
User Controls |
Menu and Select buttons Rotary adjustment knob |
Performance |
Power |
Instant On/Instant Off |
Bit Rate |
Adjustable; 32 Kbps - 3 Mbps |
Frame Rate |
Adjustable; 1-30 fps |
Resolution |
Adjustable;
D1 (720x576/720x480, 704x576/704x480);
Half D1 (352x576/352x480);
CIF (352x288/352x240);
QCIF (176x144/176x120); 128x96 |
Wireless Range |
Up to 1,800 ft (Omni-directional antenna)Greater range with a directional antenna |
Other |
Operating Temp |
Operating Temperature 0°C to 45°C |
Operating Humidity |
10-95%, RHG non-condensing |
Storage Temp |
-20°C to 70°C |
Weight |
<2 Kg |
Dimensions |
181 x 125 x 40 mm |
NOTE: Specifications are subject to change.
XVD CamCast Professional Receiver
Feature |
Specification |
Input/Output |
Input supported |
Up to 4 XVD CamCast Pro Transmitters |
Video Output |
Composite video (4 x BNC), 1.0 Vp-p, 75O, synch negative |
Audio Output |
Stereo L/R (8 x XLR) , 600 |
Network interface |
Integrated wireless 2.4 GHz (802.11g)10/100BaseT (RJ45 x 2) |
Antenna |
SMA connector |
AC Input |
100-240VAC +/- 10% |
User Interface |
User Settings |
User can monitor, adjust and override settings for each camera's frame rate and resolution |
User Feedback |
LCD for each camera (shows bitrate, frame rate and resolution)
Power indicator (LED)
Wireless Link indicator (LED)
Camera selected indicator (LED) |
User Controls |
Menu and Select buttons Rotary adjustment knob |
Performance |
Bit Rate |
32 Kbps - 3 Mbps / camera |
Frame Rate |
Adjustable; 1-30 fps / camera |
Resolution |
Adjustable; D1 (720x576/720x480, 704x576/704x480);
Half D1 (352x576/352x480);
CIF (352x288/352x240);
QCIF (176x144/176x120); 128x96 |
Other |
Dimensions |
1U Rack-mount enclosure (537 x 426 x 44.3 mm) |
NOTE: Specifications are subject to change.
|
