Efficient content distribution in a small package
XVD CamCast Enterprise is an end-to-end IP-based audio/video content delivery and distribution solution. Applications include video on demand, broadcasting, distance learning and surveillance.
At the heart of this solution is the powerful CamCast Enterprise Transmitter, a compact encoder that connects directly to almost any video camera and IP-based network. The CamCast Enterprise Transmitter encodes and compresses analog (NTSC or PAL) video and analog audio for transmission over any IP-based network. Configuration and control is done through a web-based interface using any browser-equipped PC on the network.
Powered by XVD technology, the CamCast Enterprise Transmitter delivers DVD-resolution video at 30 fps for less bandwidth and storage than required by today's MJPEG-based video systems, which operate at only 2-5 fps!
| Video Quality |
Resolution |
| |
352x240/352x288 |
720x480/720x576 |
| Low |
100 Kbps |
300 Kbps |
| Med |
300 Kbps |
700 Kbps |
| High |
700 Kbps |
2,200 Kbps |
Scalable solution for advanced content distribution and surveillance applications
Supports 100's of cameras and clients in different locations
Remote redundant archiving
Supports PCs, TVs and wireless PDAs as clients
May be used with Enterprise Servers or as standalone Mini-Servers
How it Works:

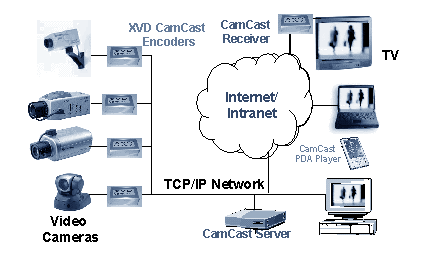

The XVD CamCast Enterprise system is a combination of hardware and software modules that together provide an integrated solution for managing, recording and accessing cameras remotely through a secure web browser on a PC. Cameras can also be selected viewed on a standard TV with a remote control by using a CamCast Receiver. The system can be tailored to address specific usage requirements and scales to support hundreds of cameras and users.
XVD CamCast Enterprise
Module Features
|
Specifications |
- Real-time compression of audio and video into XVD format
- Supports multiple resolutions, up to full-D1 resolution @ 30 fps
- NTSC and PAL formats
- Streams to 1 or 2 clients/servers
- Analog video input via S-Video or Composite video
- Motion detection (sensitivity adjustable remotely at client)
- 10/100BaseT Ethernet Interface
- Analog stereo audio input, optional audio output
- Compact, cost-effective design
|
- 123 x 78 x 25.6 mm
- 110 - 220 v auto switching power adaptor (5 v input to module)
- 4-pin Mini DIN for S-video
- 3.5 mm mini phone jack for audio input/output
- Optional RS232 or RS485 interface for PTZ cameras
- Operating temp: 0ºC - 45ºC
- Non-operating temp: -20ºC to 70ºC
- Humidity 95% non-condensing
- Optional splash-proof housing add-on available
|

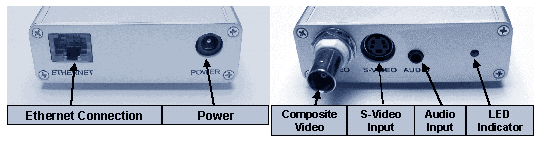

CamCast Enterprise Input/Output
 |
|
Note: Optional RS232/RS485 interface available for controlling PTZ cameras
|
XVD CamCast Enterprise: A Solution That Scales
CamCast Enterprise may be employed as a standalone mini-server, or as part of an enterprise solution, comprising the following:
1) CamCast Module: Compresses video from camera for streaming
2) CamCast Reflector: Reflects video streams to multiple clients
3) CamCast Administration: User and camera database for authentication and priviledge access
4) CamCast Recorder/Editor: Capture, view and edit archived video streams
5) CamCast Configuration Manager: Discover IP addresses of CamCast modules and connection settings

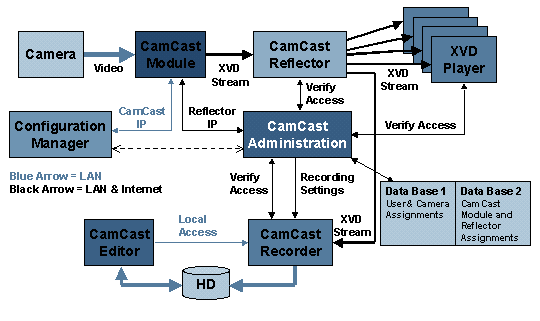

XVD CamCast Enterprise Server Flow Chart
|
